Our Product Categories
Explore our cutting-edge power electronics products designed for efficiency and sustainability in energy management.
Power System Emulators
Experience the future of grid innovation in Power System Emulators with Silov's cutting-edge product range across PV Emulators and Wind Energy Conversion System.

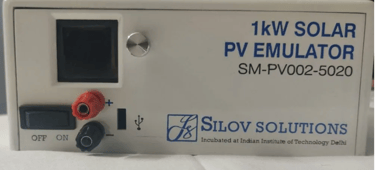

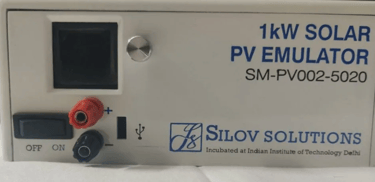

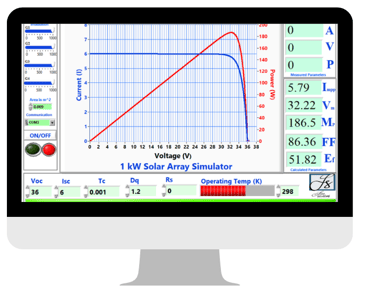

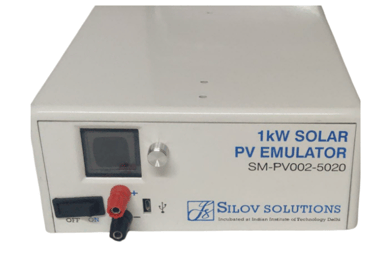

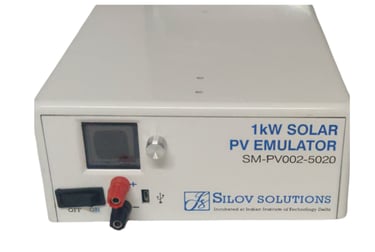

1 kW Solar PV Emulator
High power density PV emulator for realistic solar array behavior in lab environments.
Specifications & Features
- Voltage: 0–50V DC
- Current: 0–20A DC
- AC Input: 180–230V AC
- 1kW high power density

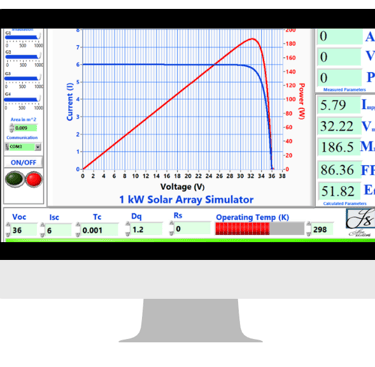

- Simulation of I-V characteristics
- Dynamic irradiation and temperature profiles
- MPPT efficiency testing
Use Cases
- Testing MPPT algorithms
- Effect of shadow/cloud
- De-rated PV operation
- Series/parallel connections

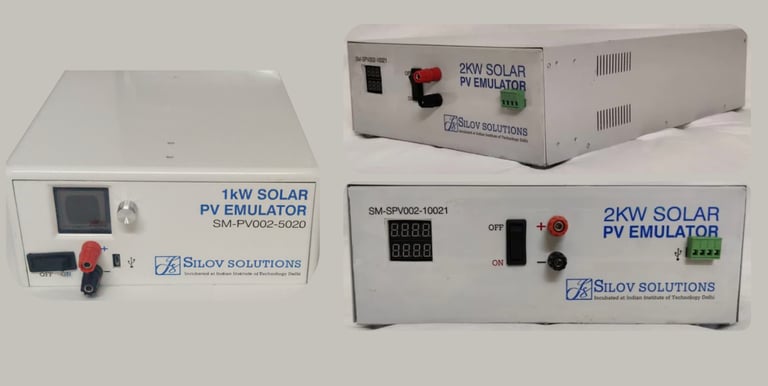

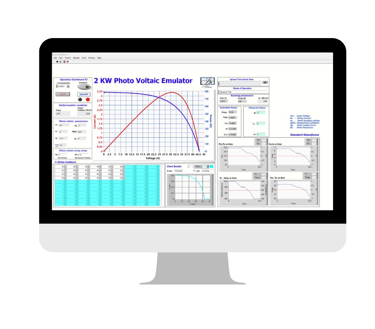

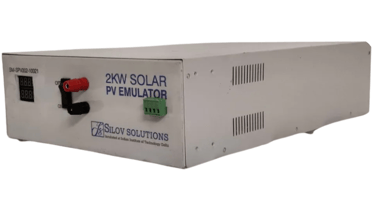

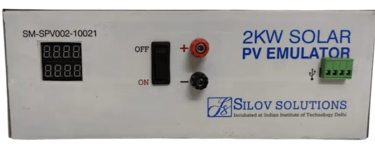

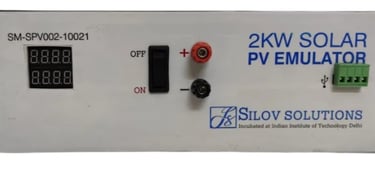

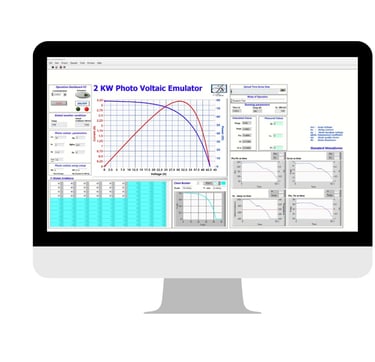

2 kW Solar PV Emulator
Functions as both a solar array emulator and simulator.
Specifications & Features
- Voltage: 0–96V DC
- Current: 0–20A DC
- AC Input: 220–240V AC
- Precision voltage & current measurements
- Auto I-V program
- Low leakage current
Use Cases
- Calculation of MPP/fill factor
- Efficiency vs load characteristics
- Temperature effects on output

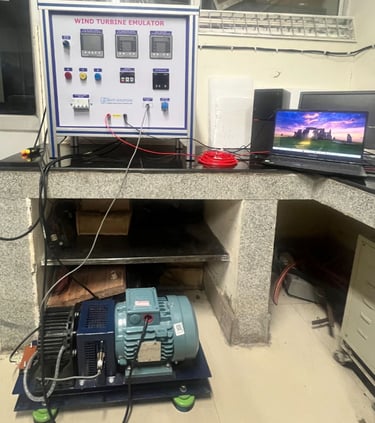

Wind Energy Conversion System (WECS)
Replicates dynamic behavior of wind turbines and grid interaction.
Specifications & Features
- Output Voltage: 0–96V
- Current: 20–200A
- Capacity: ~1–10 kVA
- PMSG: 1kW–5kW
- Dynamic torque-speed control
- Grid interaction emulation
- Wind profile simulation
Use Cases
- Torque-speed validation
- Tip-speed ratio optimization
- Wind gust simulation
IoT Infrastructure
Unlock the full potential of connectivity with Silov's IoT Infrastructure delivering seamless and secure solutions.
.avif&w=1200&q=75)

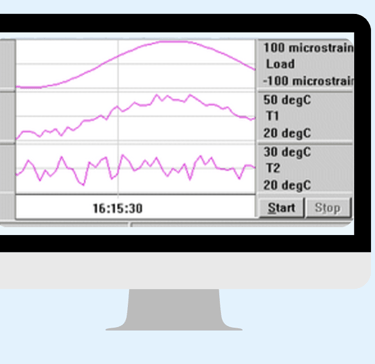

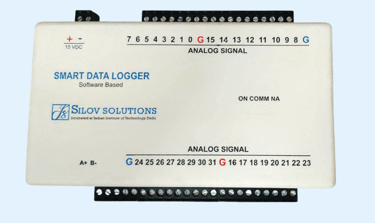

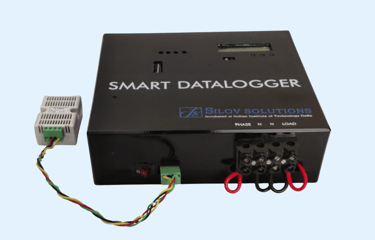

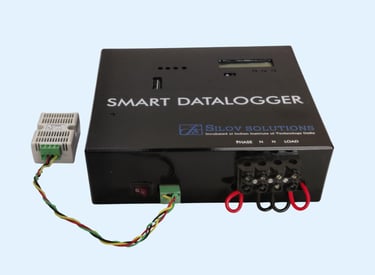

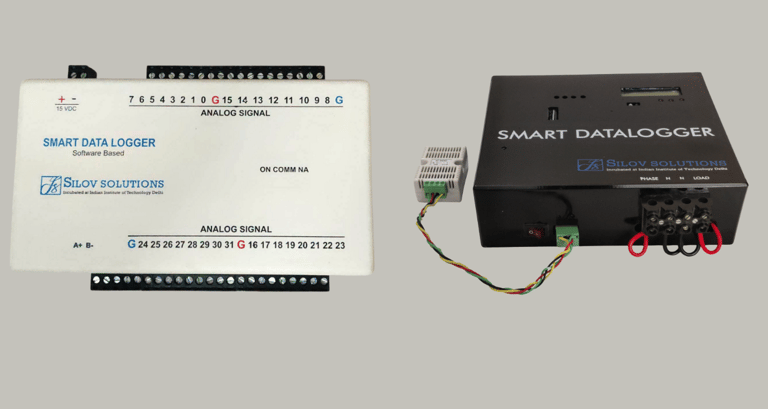

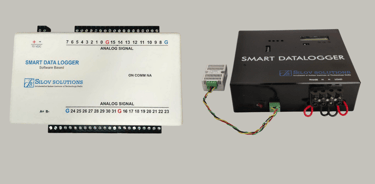

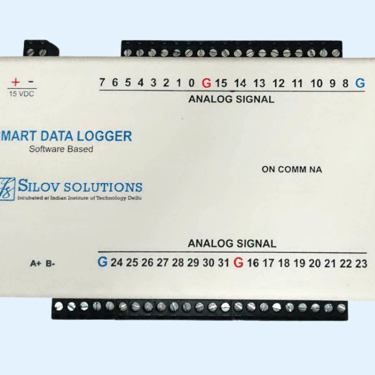

Smart Data Logger
Reliable data acquisition platform with flexible channel support.
Specifications & Features
- 32 Channels
- Analog Input: 0–5V (0.1V accuracy)
- Input Voltage: 15V DC
- Cloud integration available

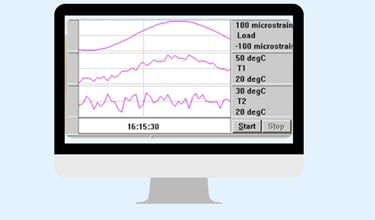

- Software for control and data storage
Use Cases
- Interfacing with temperature, humidity, voltage, and current sensors

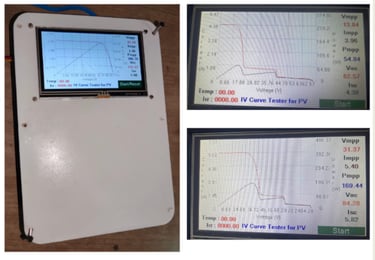

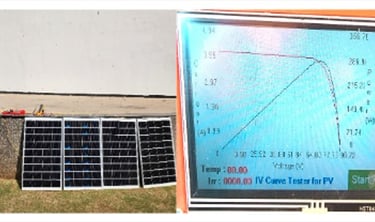

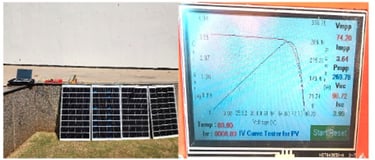

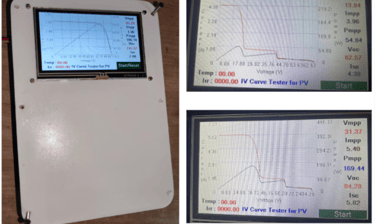

IV Curve Tracer
Measures and plots IV characteristics of solar panels and semiconductors.
Specifications & Features
- Rating: 450V / 10A
- Touch controls
- Internal battery backup
- Cloud integration
- Rapid capture of I-V/P-V curves
- Portable diagnostics
Use Cases
- Analysis of Voc, Vmpp, MPPT, Isc
Power Conditioning Units (Standard)
Optimize energy efficiency with stable and clean power delivery.

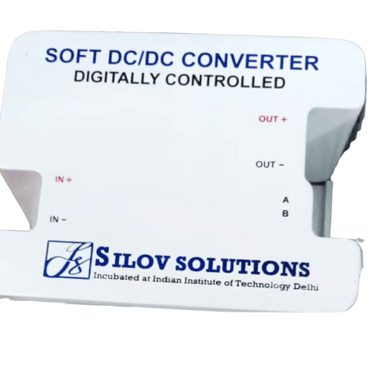

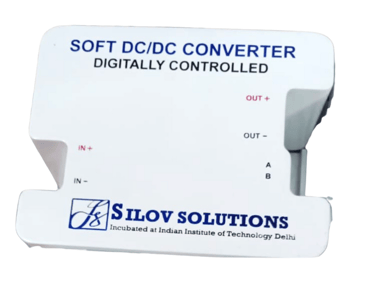

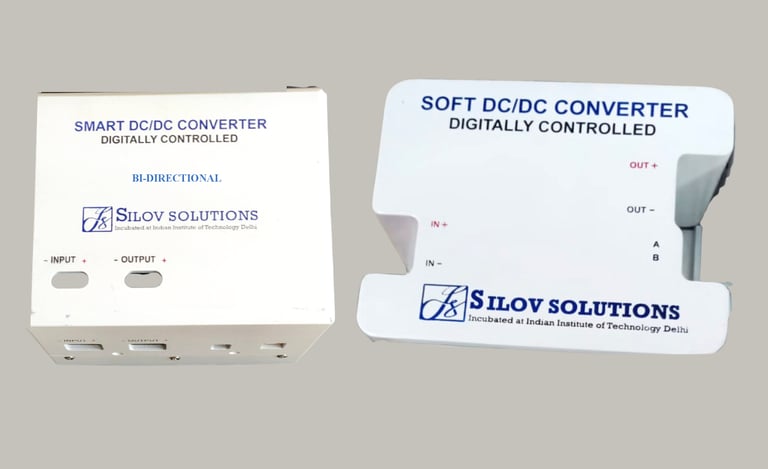

Unidirectional DC-DC Converter
High-performance buck/boost converter for lab and pilot setups.
Specifications & Features
- Buck: In 10–80V, Out up to 80V
- Boost: In 10–50V, Out 11–80V
- Current: 20A
- Non-isolated type
- MOSFET driver
- Control via Matlab/LabVIEW/Microcontroller
Use Cases
- Open/closed loop control
- MPPT control
- Modbus communication

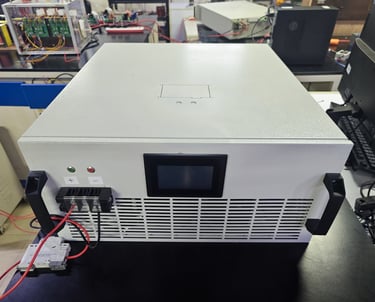

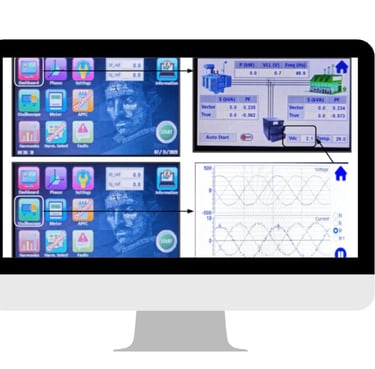

Bidirectional Inverter
Grid-tied inverter for advanced power flow experiments.
Specifications & Features
- 3-Phase Voltage: 440V
- DC Voltage: 690–800V
- Current: 75A RMS
- Grid-tied (SMINV-800/70)

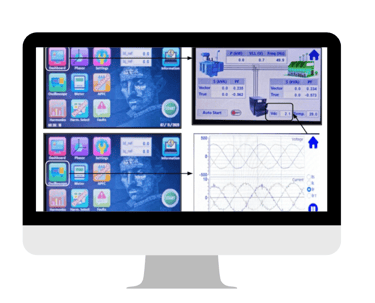

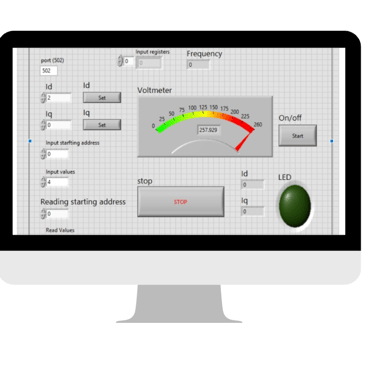

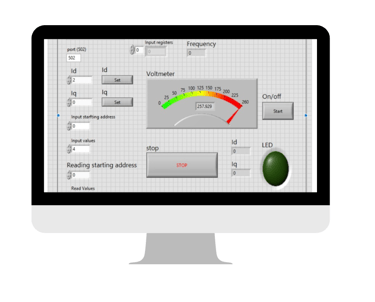

- LabVIEW GUI with Modbus
- 4.3 inch onboard display
Use Cases
- DC bus precharging
- Grid-to-battery flow
- Battery-to-grid flow
- Id-Iq control
.avif&w=1200&q=75)

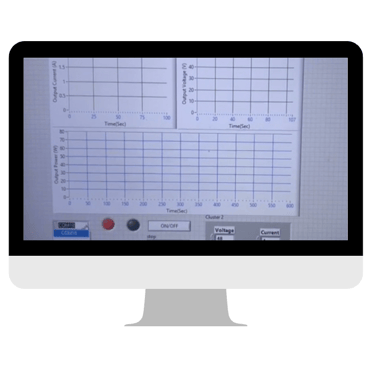

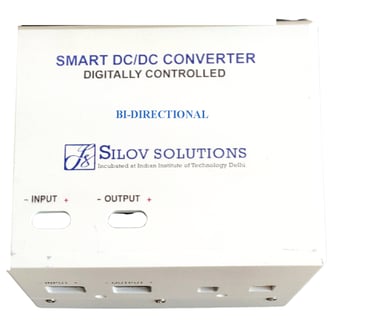

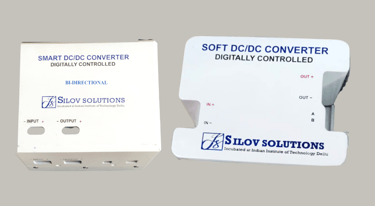

Bidirectional DC-DC Converter
Efficient bidirectional conversion for storage and regenerative use cases.
Specifications & Features
- Buck: In 10–80V
- Boost: In 10–50V
- Current: 20A
- Efficiency: 90%
- Non-isolated
- Sensors for input/output V & I
- PWM provision
Use Cases
- Battery charging/discharging
- Regenerative braking simulation
Lab Scale Bidirectional Grid Sync Inverter
Integrates with the grid by matching phase, frequency, and voltage.
Specifications & Features
- Rating: 450V / 10A
- Touch controls
- Bidirectional DC charger capable
- Grid synchronization control
- High-accuracy sensing
Use Cases
- Battery charging from grid
- Powering local equipment
- Active/reactive power control

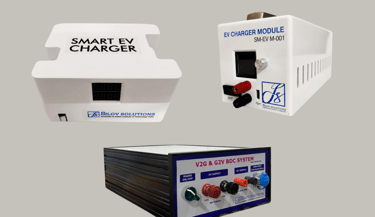

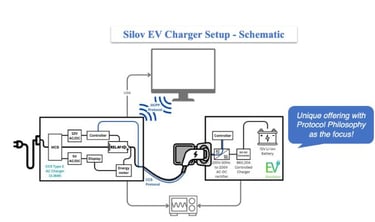

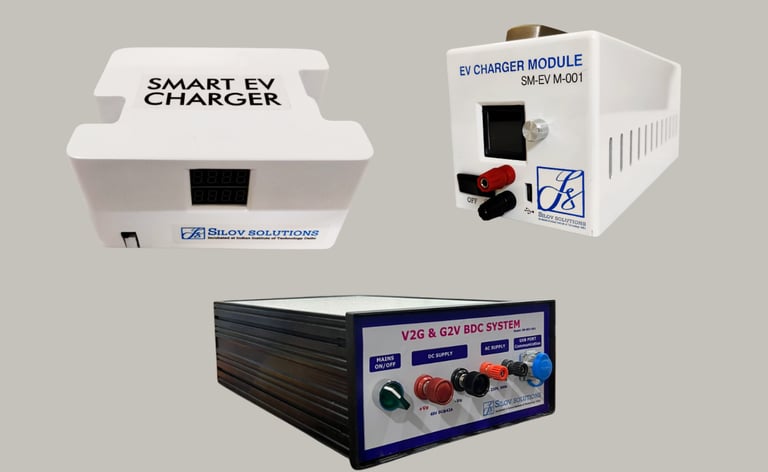

EV Ecosystem
Power the future of mobility with scalable solutions for EV charging and management.

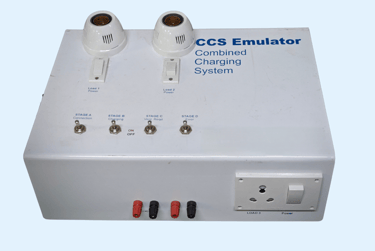

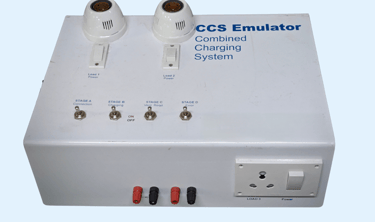

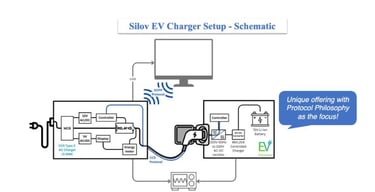

EV Emulator
Simulates behavior of electric vehicles for validation of charging systems.
Specifications & Features
- AC Input: 230V
- Output: 3.3 / 7.4 / 11.0 kW
- CCS communication stack
- Programmable vehicle profiles
- Charging scenario library
Use Cases
- 4 stages of EV-EVSE connection
- OCPP protocol control
- BMS interaction

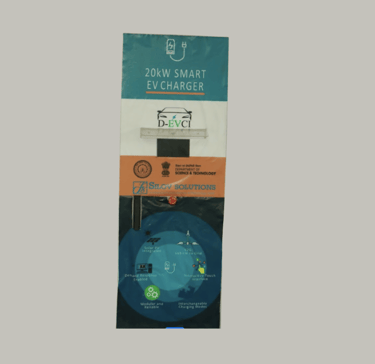

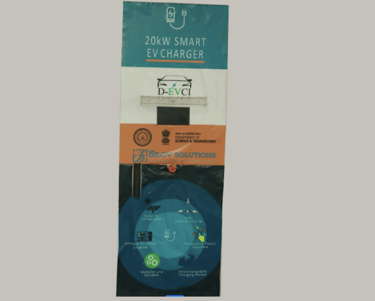

DC Fast EV Charger
Rapid DC delivery for highways and fleet operations.
Specifications & Features
- Input: 440V AC (3 Phase)
- Output: 80V, 90A
- Efficiency: 95%
- GB/T compatible
- High-density power cabinet
- Smart monitoring
Use Cases
- Solar interconnection
- Analyzing EV data (SoC, voltage demand)
- Bi-directional flow

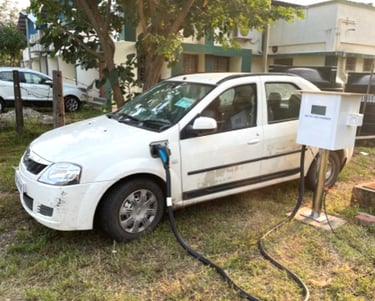

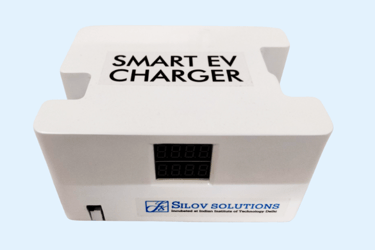

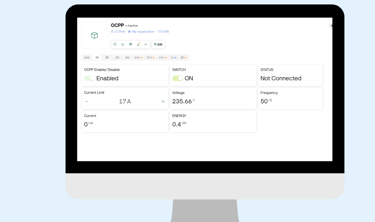

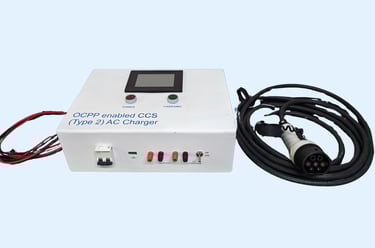

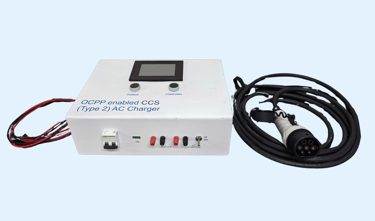

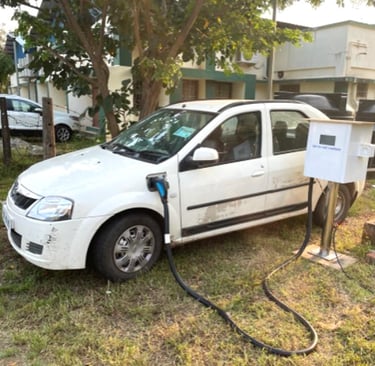

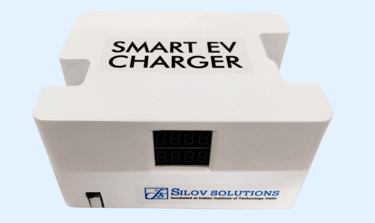

Smart AC EVSE
AC charging with remote monitoring and load management.
Specifications & Features
- Input: 230V AC
- Output: 80V, 90A

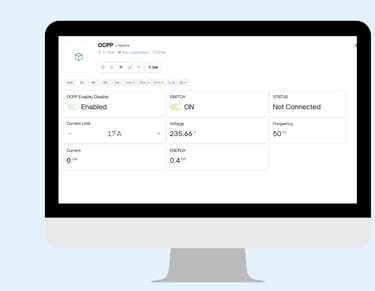

- OCPP 1.6J compatible
- CCS based
- Remote monitoring
- Load management
Use Cases
- PWM generation current control
- Solar emulator integration
Contact Us For Custom Product Requirements
Share your specifications and our engineering team will respond with a tailored solution for your application.
